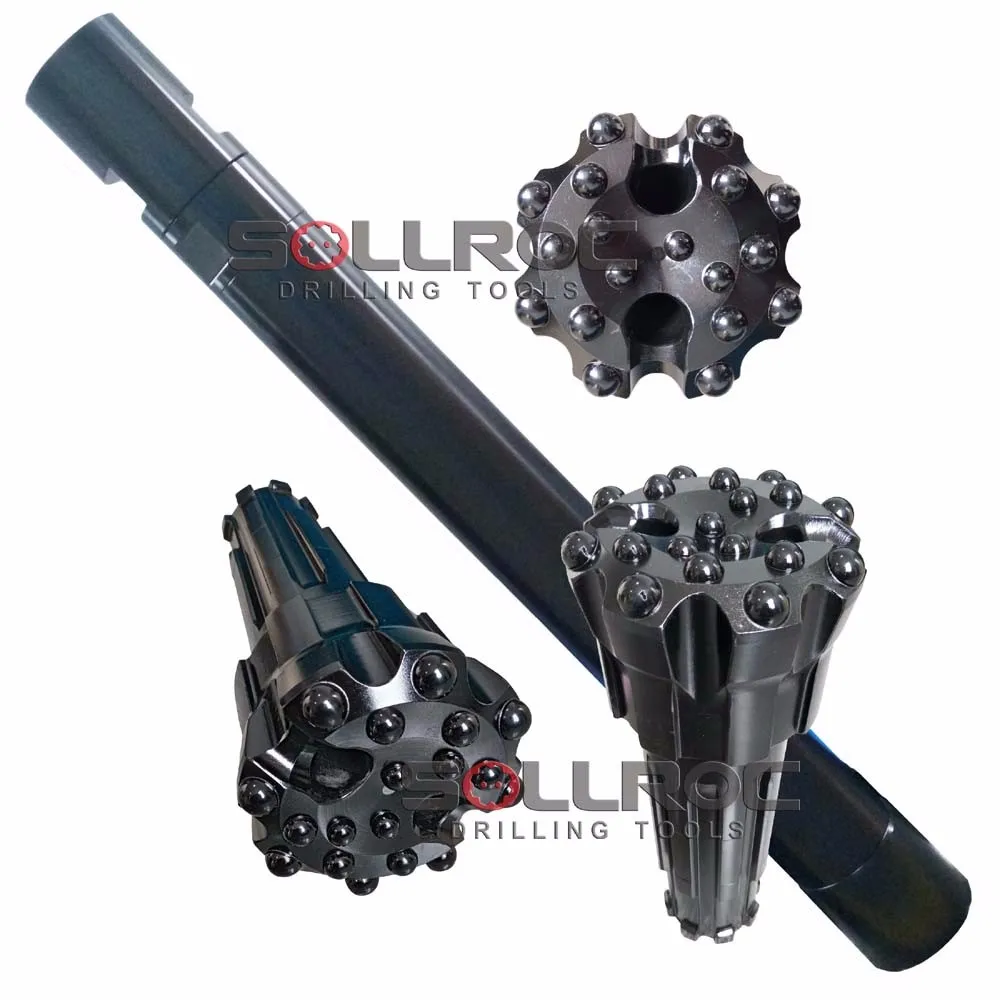

High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control

Name: High Manganese Steel RC Hammer 355inch for Exploration Drilling and Grade Control
Brand: SOLLROC
Price: 1 USD

Wholesale High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control from china suppliers

Place of Origin : Hunan, China

Brand Name : SOLLROC

MOQ : 1

Price : $1,000

Weight : 84 KG

Material : High Manganese Steel

Processing Type : Forging

Hammer Size : 3-5.5inch

Hammer Diameter : 3.19" to 5.75"

Bit Range : 3.3" to 8.27"

Thread Type : Metzke/Remet

Hole Range : 84-190mm

External Diameter : 81-146mm

Length : 1069-1362mm

Connection Thread : 3" to 4.5" Remet/Metzke

Working Pressure : 1.0-3.5Mpa

RC Bits Sizes : 86mm-152mm

Button Configuration : Adjustable

Drilling Depth : Deep hole capable

Contact Now

Application

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc

Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

Features

- Manufactured using premium hardened metals for long life;
- Maximum material recovery, up to 98%;
- No cross contamination of samples;
- Handles injection of water, foam, oil, and polymers without performance loss;
- Delivers maximum drilling under water.

Product Description

RC hammer specifications:

Hammer Model	Hole Range (mm)	External Diameter (mm)	Length (without bit) mm	Connection Thread	Working Pressure
SRC531	84-105	81	1069	3" Remet	1.0-3.0Mpa
SRC004	115-127	107	1252	3.5-4" Remet 4" Metzke	1.0-3.0Mpa
SRC542	121-146	109.5	1191	3.5-4" Remet 4" Metzke	1.0-3.0Mpa
SRC543	121-146	116	1191	3.5-4 Remet 4" Metzke	1.0-3.0Mpa
SRC545	130-146	117.5	1261	4-4.5" Remet 4-4.5" Metzke	1.5-3.5Mpa
SRC547	133-146	124.5	1270	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
SRC040	121-146	120.5	1362	3.5-4.5" Remet 3.5-4.5" Metzke	1.5-3.5Mpa
SRC052	133-152	121	1227	4-4.5" Remet 4-4.5" Metzke	1.5-3.5Mpa
SRC052R	133-152	124	1225	4-4.5" Remet 4-4.5" Metzke	1.5-3.5Mpa
SRC054	135-152	130	1294	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
SRCMX5456	136-152	132	1362	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
SRC060	152-190	146	1320	As Request	1.5-3.5Mpa

SOLLROC RC bits sizes.

- RC bits 86mm -102mm for 3" RC hammer RE531

- RC bits 114mm -127mm for 4" RC hammer RE004

- RC bits 121mm -133mm for 4.5" RC hammer RE542/RE543

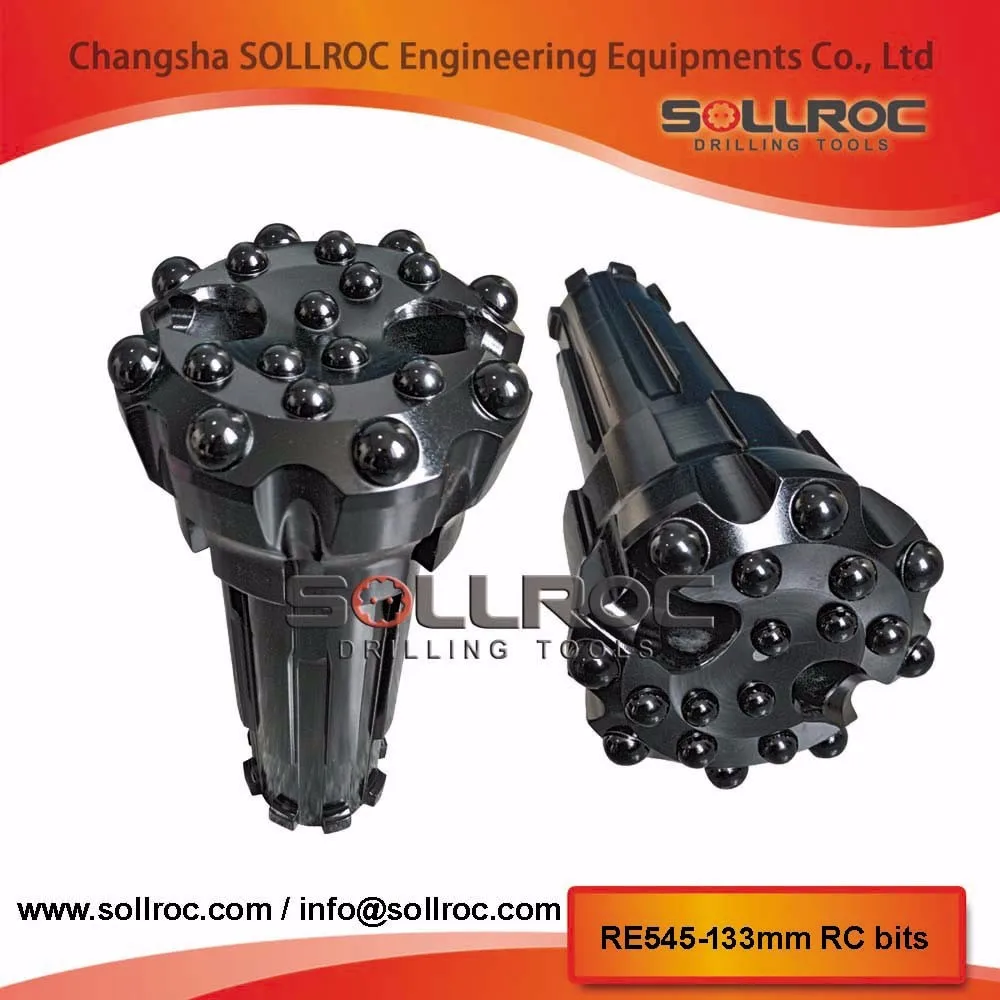

- RC bits 124mm - 138mm for 5" RC hammer RE545/PR40

- RC bits 133mm - 146mm para 5.5" RC hammer PR52/RE547/PR54/MX5456

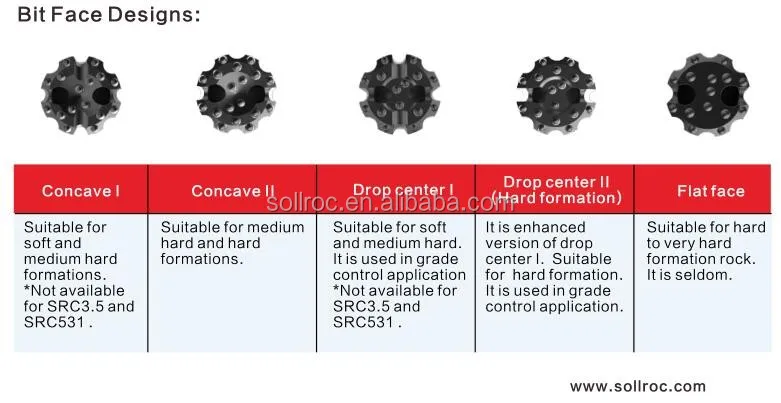

We adjust button number, button configuration, button diameter to get ultra performance and reduce the drilling cost for you according to your rock formation situation.

High Manganese Steel RC Hammer 3-5.5inch for Exploration Drilling and Grade Control

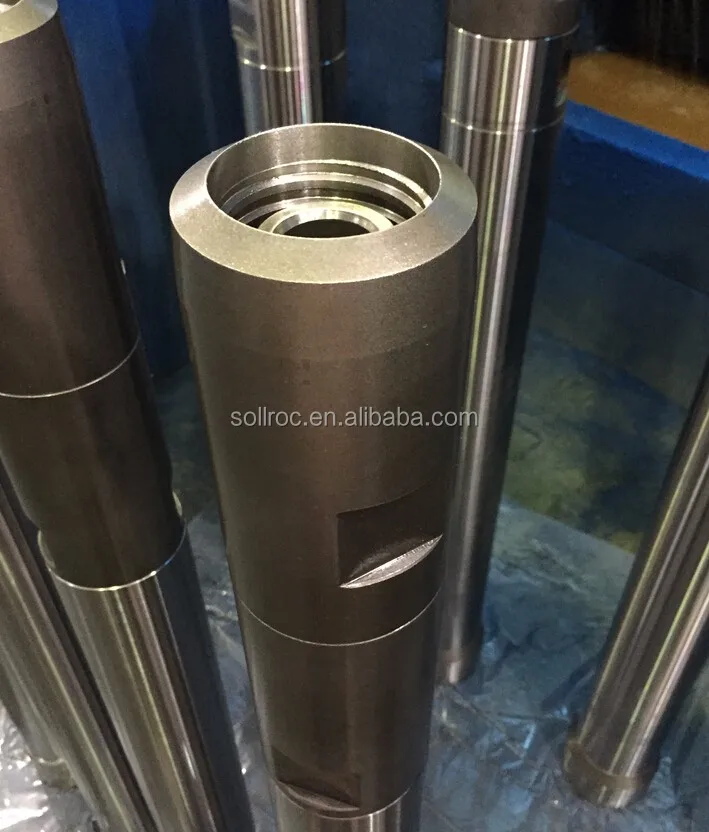

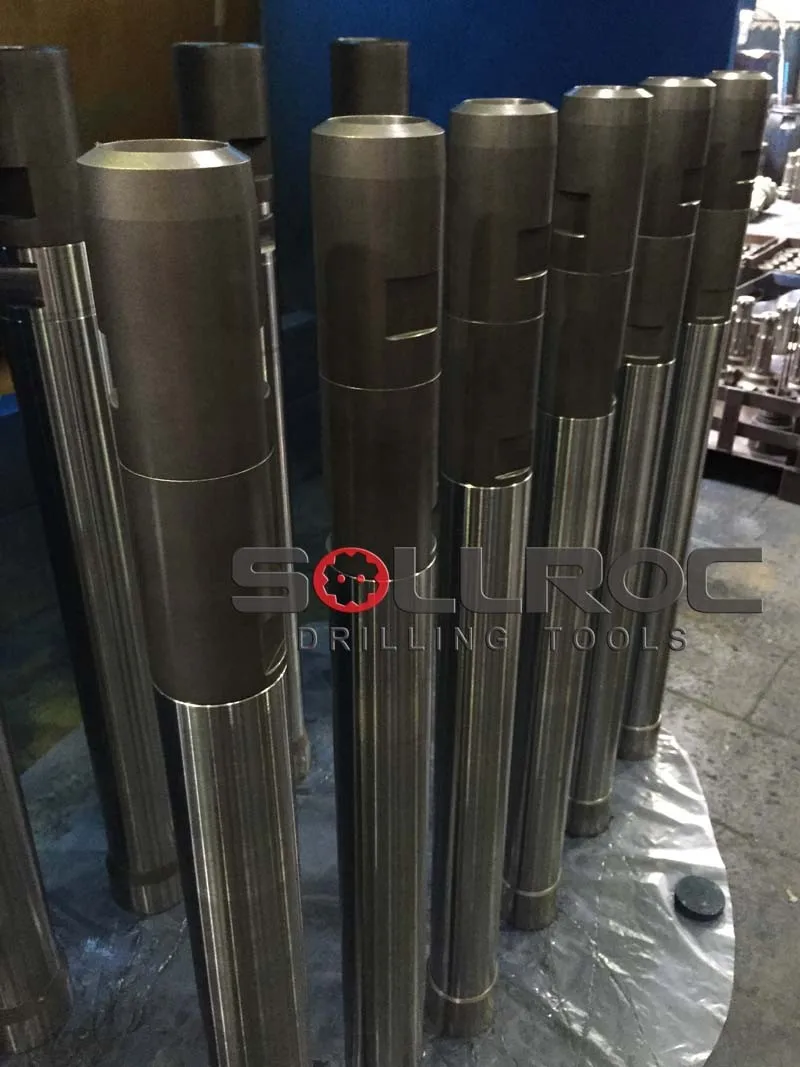

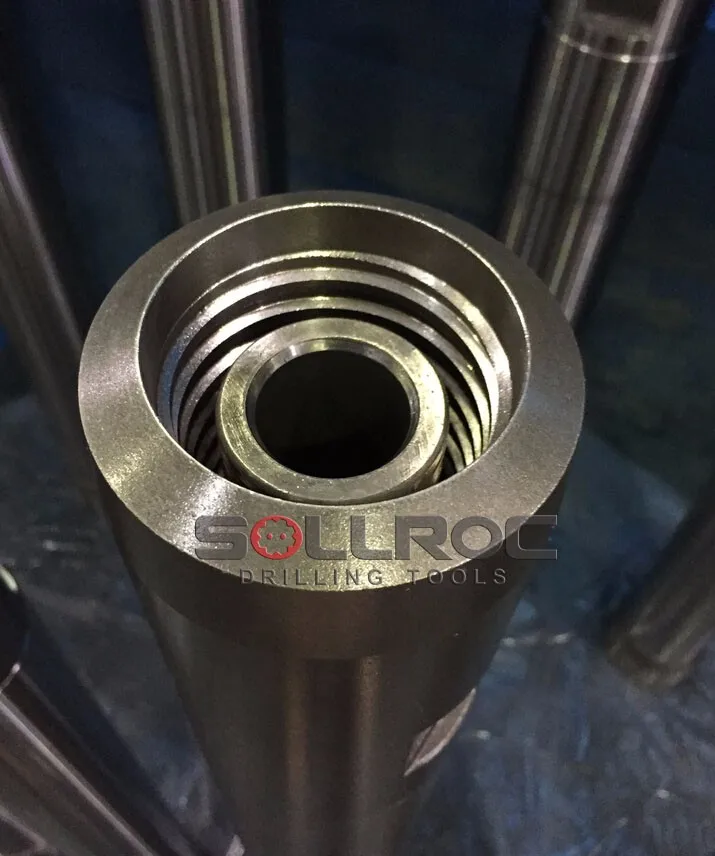

Detailed Images

Packing & Delivery

Packing

Ply-wooden cases + pallet.

Delivery time:

2-3 weeks to departure port.

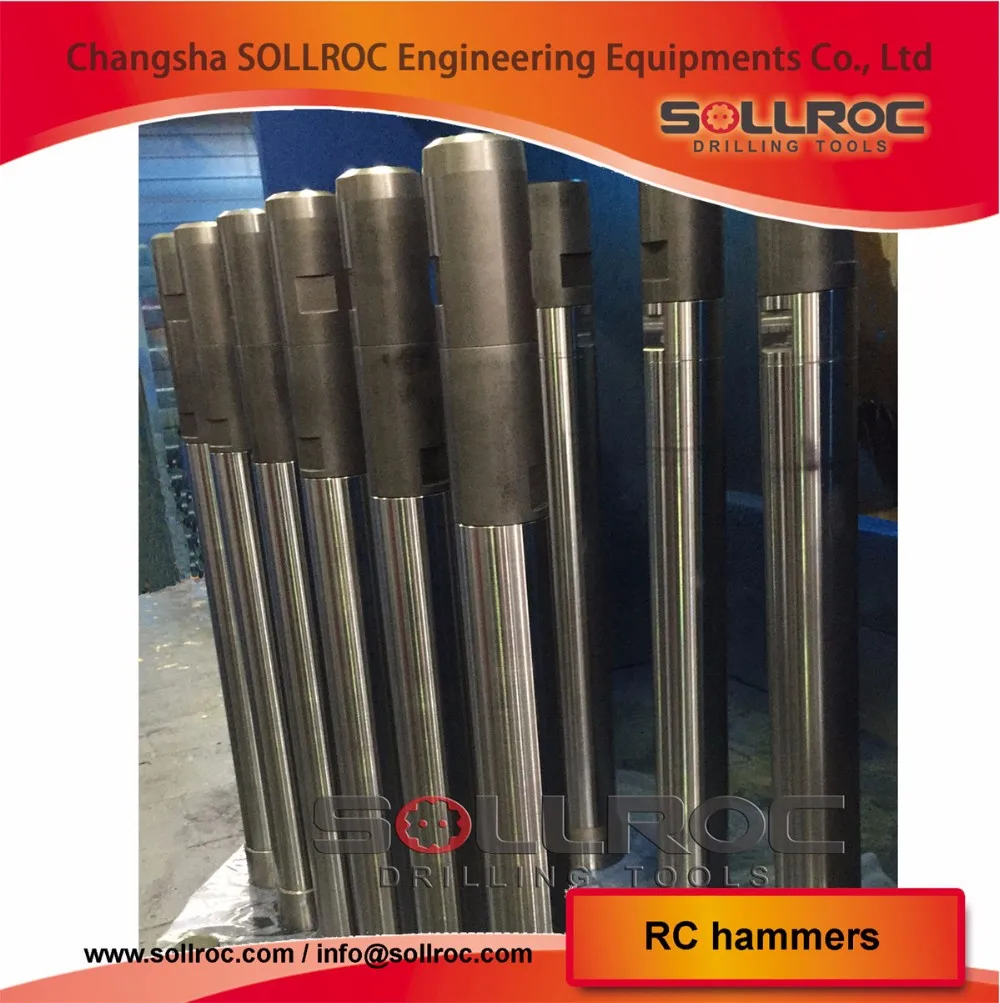

Related RC hammers

- 3" RC hammers model RE531

- 4" RC hammers model RE004

- 4.5" RC hammers model RE542

- 4.5" RC hammers model RE543

- 5" RC hammers model PR40

- 5" RC hammers model RE545

- 5.5" RC hammers model PR52

- 5.5" RC hammers model PR54

- 5.5" RC hammers model RE547

- 6" RC hammers model RC6A

DTH hammers >>

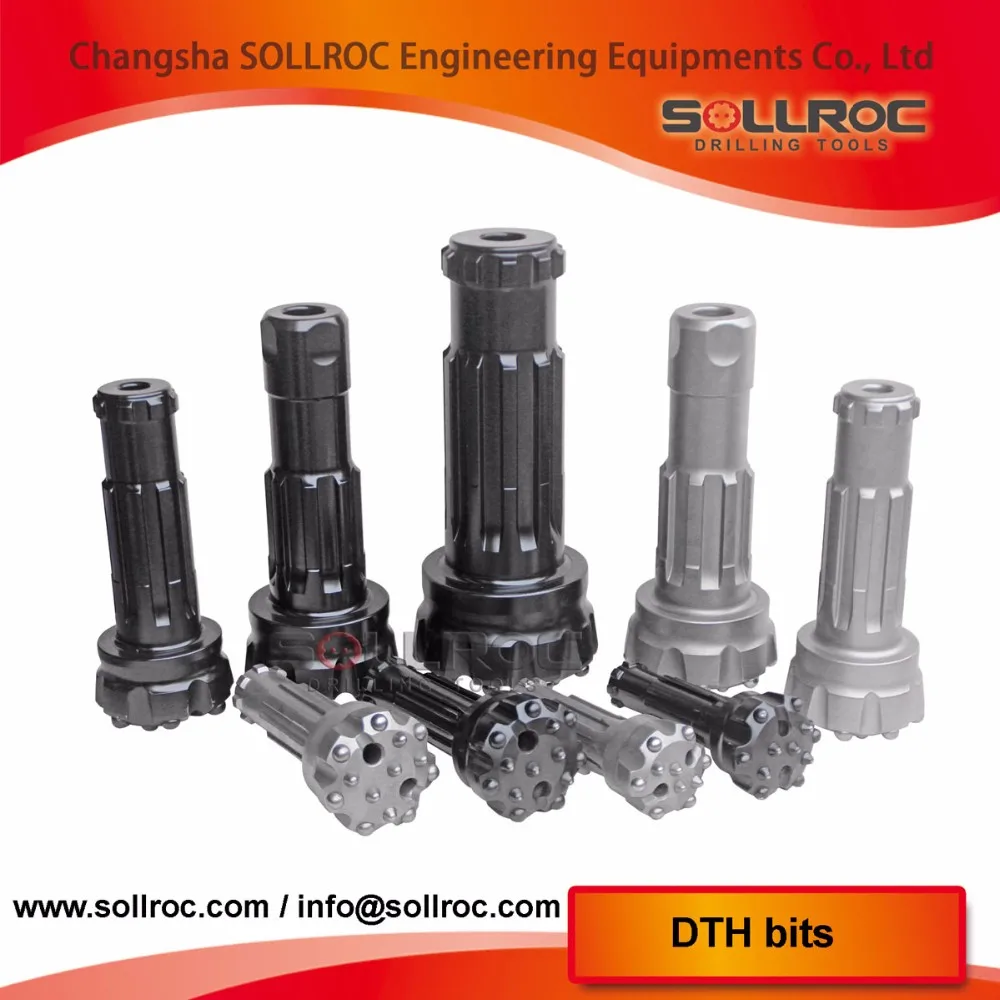

DTH bits >>
